Eltek Equipment :

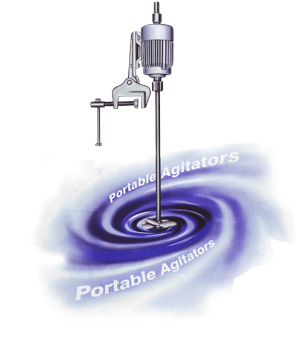

Manufactures Laboratory Stirrer, Portable Mixer, Hollow Shaft Top
Entry/Side Entry Agitator and Emulsifier.
All above Equipment can be supplied
with VF drive to get variable speed and frequency. For applications
where instant Start/Stop is required or to cut Production cycles in
fixed space and time. Eltek brake Motors are used for the
equipment.
Motors : Eltek Motor are mad
in-house that confilm to IEC Specifications and BIS standards. All
motors are asynchronous three phase totally enclosed fan cooled (T.E.F.C.)
type with class ‘F’ insulation and Index of Protection IP 55.
Eltek Hollow shaft Stirrer PHA
Model : Eltek hollow shaft stirrer comes with brass nut and
collet and the shaft height can be easily adjusted in the hollow
spindle for smooth and vibration-free operation. All the stirrer
shaft are of stainless steel AISI 304. In case of concentrated
chemicals AISI 316 grade are recommended. The Propellers are punched
out of S.S. Plates and duly curved at an angle. If the vessel is
deep and the solution is of high viscosity value, two propellers are
recommended for uniform flow and effortless mixing
|
|
Technical Data : PHA Model |
|
Model No. |
HP / KW |
RPM |
DØmm |
YØmm |
|
PHA-1/B-1A |
0.5 / 0.37 |
720 |
150 |
120 |
|
PHA-1/6-18 |
0.5 / 0.37 |
960 |
150 |
120 |
|
PHA-1/4-1C |
0.5 / 0.37 |
1440 |
120 |
100 |
|
PHA-2/8-2A |
1.0 / 0.75 |
720 |
170 |
150 |
|
PHA-2/6-2B |
1.0 / 0.75 |
960 |
170 |
150 |
|
PHA-2/4-2C |
1.0 / 0.75 |
1440 |
150 |
120 |
|
PHA-3/8-3A |
2.0 / 1.5 |
720 |
200 |
170 |
|
PHA-3/6-3B |
2.0 / 1.5 |
960 |
200 |
170 |
|
PHA-3/4-3C |
2.0 / 1.5 |
1440 |
170 |
150 |
|
PHA-4/8-4A |
3.0 / 2.2 |
720 |
200 |
170 |
|
PHA-4/6-4B |
3.0 / 2.2 |
960 |
200 |
170 |
|
PHA-4/4-4C |
3.0 / 2.2 |
1440 |
200 |
170 |
|
DØ of
propeller when only one is used.
Y Ø of propeller when two are used. |
|
Eltek Low Speed Geared Stirrers EL Model |
|
For
mixing highly viscous fluids Eltek low speed geared stirrer
provided with marine type impeller are used.
Further
if speed lower than 360 RPM is desired, then turbine type
impellers are provided to achieve result.
Anchor
type impellers are provided for complete mixing ensuring that
batch does not settle down inside the tank.
Motors
from 0.5 HP to 3 HP can be supplied for this range. All ratios
available as per customers requirement.
Dimension available on request.
Technical Data : EL Model |
|
Model No. |
HP / KW |
RPM |
DØmm |
YØmm |
|
EL-9-2 |
0.33 / 0.25 |
160 |
150 |
120 |
|
EL-9-3 |
0.50 / 0.37 |
240 |
200 |
170 |
|
EL-9-5 |
0.50 / 0.37 |
160 |
200 |
170 |
|
EL-9-7 |
0.75 / 0.55 |
240 |
250 |
200 |
|
EL-9-7A |
0.75 / 0.55 |
160 |
250 |
200 |
|
EL-9-9A |
1.00 / 0.75 |
360 |
200 |
250 |
|
EL-9-9B |
1.00 / 0.75 |
240 |
300 |
250 |
|
EL-9-9C |
1.00 / 0.75 |
160 |
300 |
250 |
|
EL-9-10A |
1.50 / 1.1 |
360 |
325 |
300 |
|
EL-9-10B |
1.50 / 1.1 |
240 |
325 |
300 |
|
EL-9-11A |
2.0 / 1.5 |
360 |
350 |
300 |
|
EL-9-11B |
3.0 / 2.2 |
360 |
400 |
350 |
|
Eltek emulsifiers EMR Model are specially recommended
for all the Research Laboratories for carrying out various
process like emulsification, missing, homogenizing, dispersion,
suspension and disintegration. At vasai plant in Thane District
out R & D team is working on various molecular analysis to cater
any type mixing and stirring application. |
|
Technical Data : EMR Model |
|
Model
No. |
HP / KW |
RPM |
Dmm |
Pmm |
Hmm |
Lmm |
|
EMR-1A |
1.0 / 0.75 |
2800 |
25 |
75 |
1220 |
750 |
|
EMR-1B |
1.0 / 0.75 |
1380 |
25 |
100 |
1240 |
750 |
|
EMR-2A |
1.5 / 1.1 |
2800 |
25 |
90 |
1220 |
750 |
|
EMR-2B |
1.5 / 1.1 |
1380 |
25 |
100 |
1250 |
750 |
|
EMR-3A |
2.0 / 1.5 |
2800 |
25 |
100 |
1260 |
900 |
|
EMR-3B |
2.0 / 1.5 |
1380 |
25 |
125 |
1275 |
900 |
|
EMR-4A |
3.0 / 2.2 |
1380 |
30 |
150 |
1445 |
900 |
|
EMR-5A |
5.0 / 3.7 |
2800 |
30 |
175 |
1475 |
900 |
|
EMR-5B |
5.0 / 3.7 |
1380 |
30 |
175 |
1475 |
900 |
|
Material of construction : Normally all the mixers made out
of 304 type stainless steel contact parts. Wherever the process
specially calls for, 316 type stainless steel also is offered.
The other important contact part, guide bush can be made out of
Nylon. Brass, Gunmetal or Cast Iron. Teflon can be supplied
extra, if necessary. |
|
|
|
|
|
|
|
|
|
 |
|
|
| |
|
|
|
|
